Photovoltaic Installation Materials

Specification

Maximum compatible pipe size (in.)	2
Product Height (in.)	2 in
Product Depth (in.)	0.5 in
Product Width (in.)	2 in

Ordering Process

Get a Quote

Please request a quote through our website and ask for customization.

Place Your Order

Place an order of your liking after selecting your preferred shipping option.

Start Production

Production will start after design approval; the production takes about 3-4 weeks.

Quality Inspection

After complete production, the products undergo quality testing.

Shipping

The order is ready to take off to your place. Once it is shipped out we would let you know the tracking info.

Types of Photovoltaic Installation Materials

The photovoltaic installation materials produced by our company mainly include the following types:

Galvanized Clamp
By tightly wrapping the clamp around the utility pole, it provides stable support and connection points for other components, ensuring the safety and reliability of power transmission and communication lines.

Galvanized Screw Ground Pile
The spiral piles provide a stable support point for the photovoltaic bracket by screwing into the ground. It can bear the weight of photovoltaic modules, brackets and related equipment, ensuring that the photovoltaic system can remain stable under various environmental conditions, such as strong winds and earthquakes, to prevent damage to photovoltaic modules or collapse of the entire system due to unstable brackets.

Galvanized Photovoltaic Bracket
Usually used in large-scale ground photovoltaic power stations, they are characterized by relatively high bracket heights that can be adjusted according to site conditions and light angles. This type of bracket can make full use of a large area of land and achieve higher power generation efficiency by reasonably arranging photovoltaic modules.

Photovoltaic Connector
Photovoltaic connectors are used to connect the various components of photovoltaic brackets, such as columns, beams, diagonal braces, etc., to form a stable structural frame.

Power Angle Steel Bracing
In structures such as power towers, angle steel braces are connected with other components to form a triangular structure. The triangle has stability and can effectively prevent the tower from deforming, tilting or collapsing under external forces such as wind and earthquake forces, ensuring that power facilities remain upright and stable under various environmental conditions.

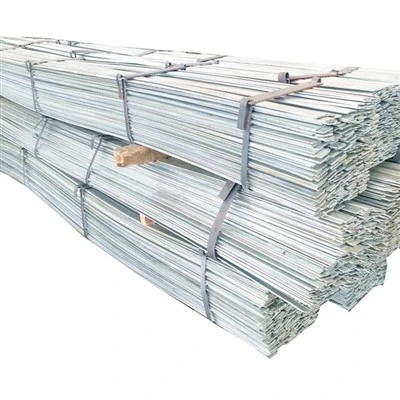

Galvanized Flat Steel
It is a key part of the electrical grounding system. Burying it underground can form a good electrical connection with the earth, providing a safe grounding path for electrical equipment and lines. When electrical equipment fails such as leakage, the current will be introduced into the earth through the galvanized flat iron to avoid electric shock and equipment damage.

Functions of Photovoltaic Installation Materials

Power Angle Steel Bracing

Power angle steel bracing have many functions, including:

Enhance structural stability: In structures such as power towers, angle steel braces are connected with other components to form a triangular structure. The triangle has stability and can effectively prevent the tower from deforming, tilting or collapsing under external forces such as wind and earthquake forces, ensuring that power facilities remain upright and stable under various environmental conditions.

Disperse loads: The loads acting on the power structure, such as the tension of the wire, wind load, ice and snow load, etc., can be evenly dispersed to the entire structural system through the conduction of the brace, avoiding local components from being damaged by excessive loads, and improving the overall bearing capacity and safety of the structure.

Improve wind resistance: In a strong wind environment, angle steel braces can change the stress state of the structure, reduce the force of wind on the structure, reduce the wind vibration response of the structure, reduce fatigue damage caused by wind-induced vibration, and extend the service life of the power structure.

Photovoltaic Connector

Photovoltaic connector have many functions, including:

Connection and fixation: Photovoltaic connectors are used to connect the various components of photovoltaic brackets, such as columns, beams, diagonal braces, etc., to form a stable structural frame. Through bolts, nuts, washers and other connectors, different components are accurately fixed in the designed position to ensure the overall stability and rigidity of the bracket, and can withstand the weight of photovoltaic modules and external forces such as wind load and snow load.

Adjustment and positioning: Some photovoltaic connectors have adjustable functions, which can adjust the position and angle of bracket components within a certain range. This is very important for adapting to different installation site conditions and optimizing the orientation and inclination of photovoltaic modules, which can ensure that photovoltaic modules can receive sunlight to the maximum extent and improve photovoltaic power generation efficiency.

Load transfer: In the photovoltaic bracket system, the load is transferred between various components through photovoltaic connectors. When the photovoltaic modules are subjected to external forces such as wind and snow, the connectors can evenly transfer these loads to various parts of the bracket, and finally to the foundation, ensuring the safety and reliability of the entire bracket system.

Shipping And Packaging Methods

Packing	High-end products will be transported in wooden boxes or cartons after being individually wrapped in blister boxes.
Shipping	We offer various shipping methods, including sea freight, air freight, and express delivery, depending on the order size and destination.

Certificate

productcate-1-1

FAQ

Q: Do screw piles need to be galvanised?

A: Corrosion-resistant materials, such as stainless steel or galvanised steel, are commonly preferred.

Q: How long do screw piles last?

A: When installed correctly and properly maintained, screw piles typically last between 75 and 100 years.

Q: Do galvanized brackets rust?

A: In conclusion, while galvanized metal is highly resistant to rusting, it can still corrode over time if the zinc coating is damaged or if it is exposed to harsh environments. Regular maintenance and proper care can help prevent rusting and ensure that galvanized metal remains durable and long-lasting.

As one of the leading photovoltaic installation materials manufacturers and suppliers in China, we warmly welcome you to wholesale bulk customized photovoltaic installation materials from our factory. Contact us for more discount information.
